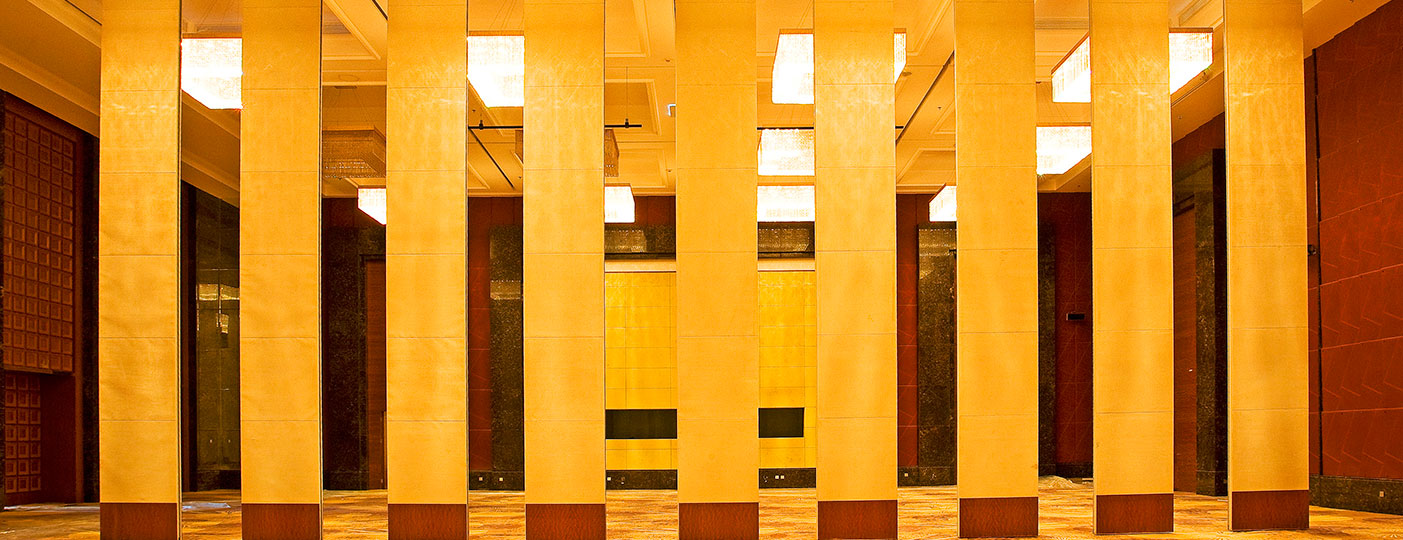

Dalai activity partition

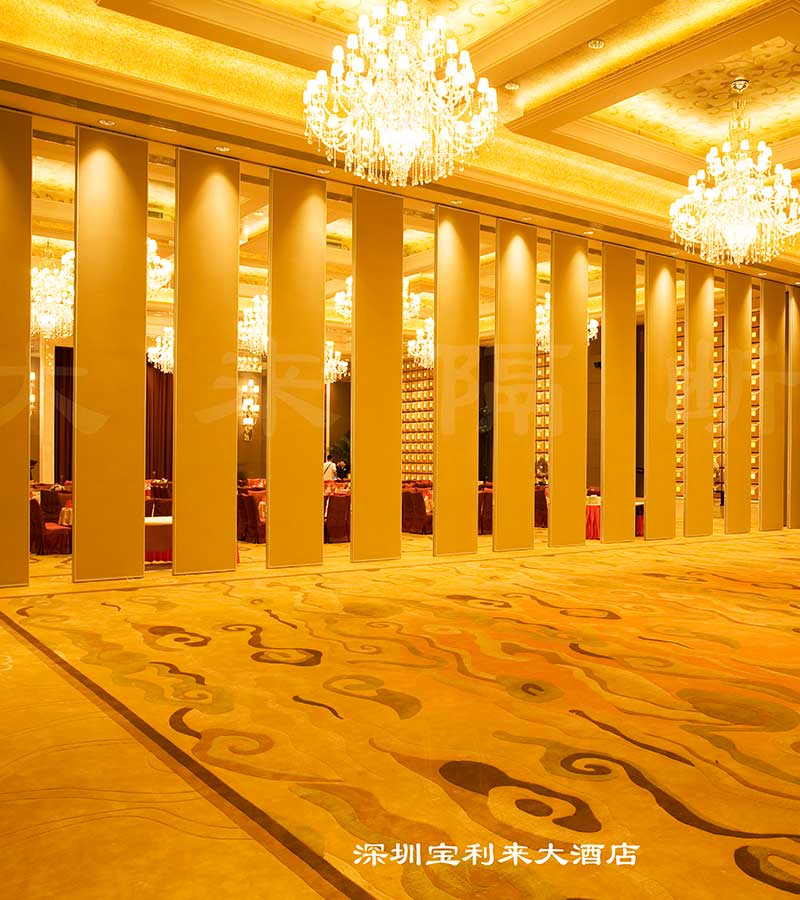

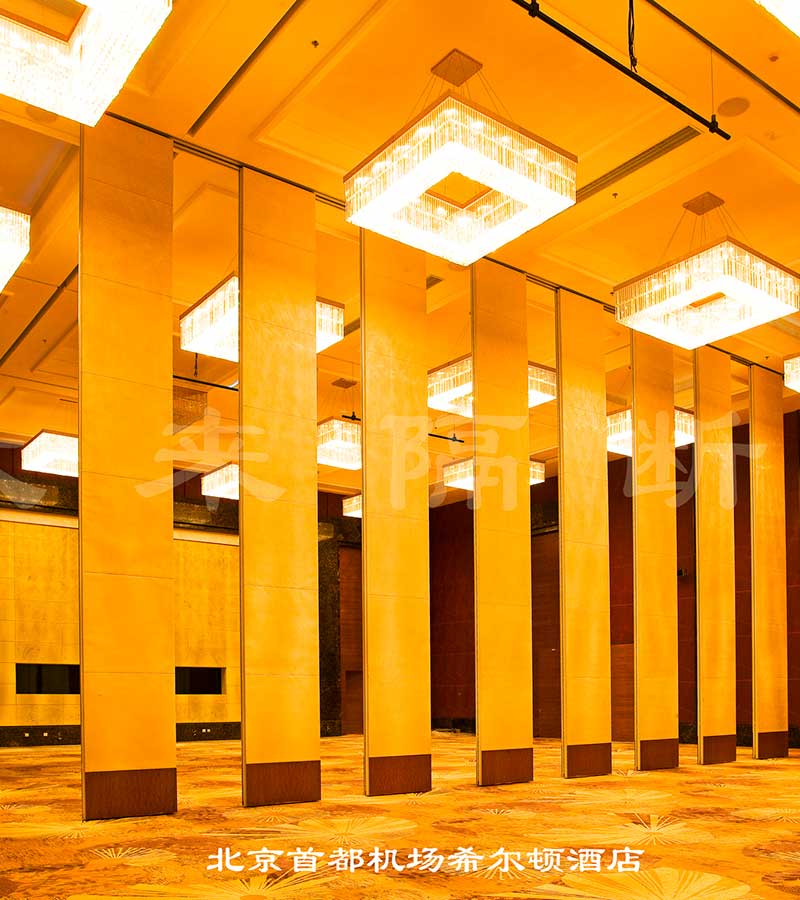

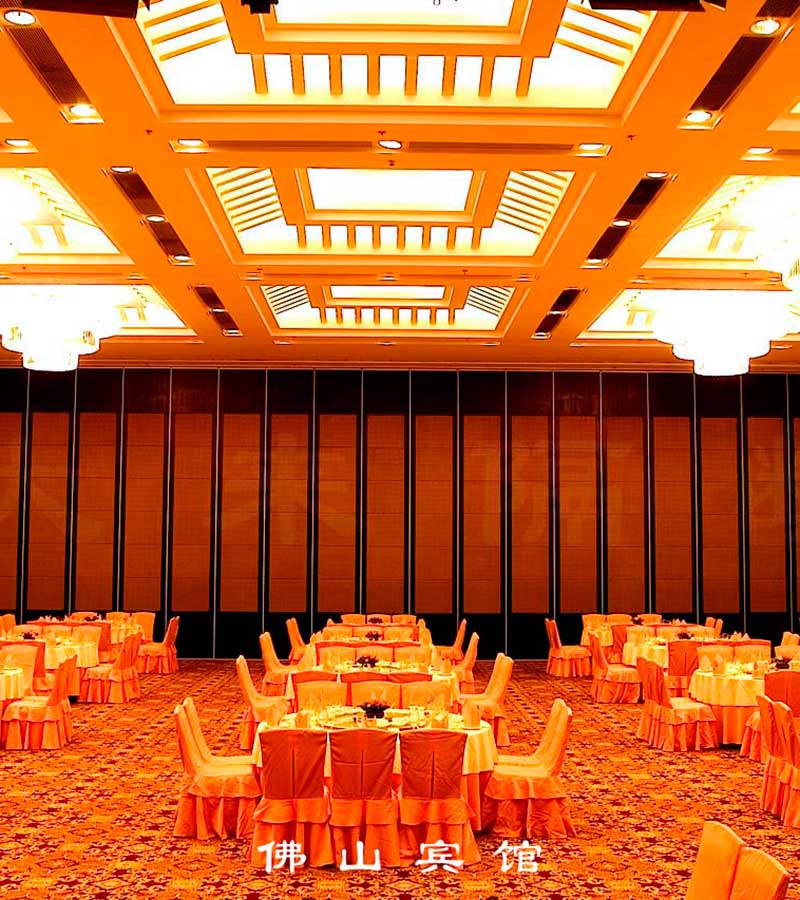

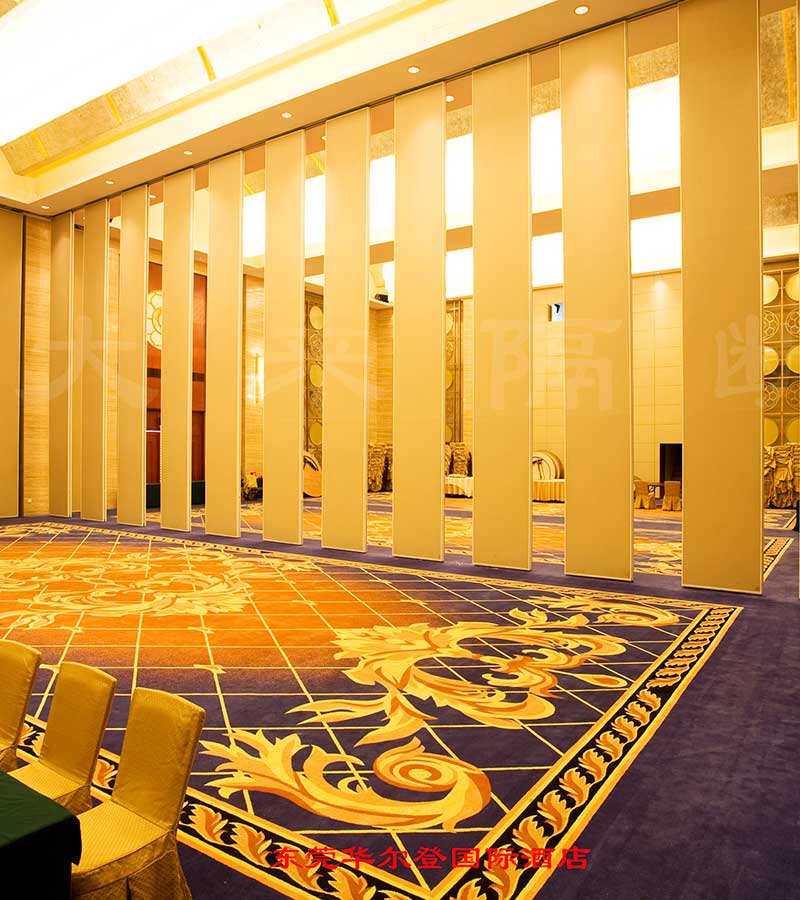

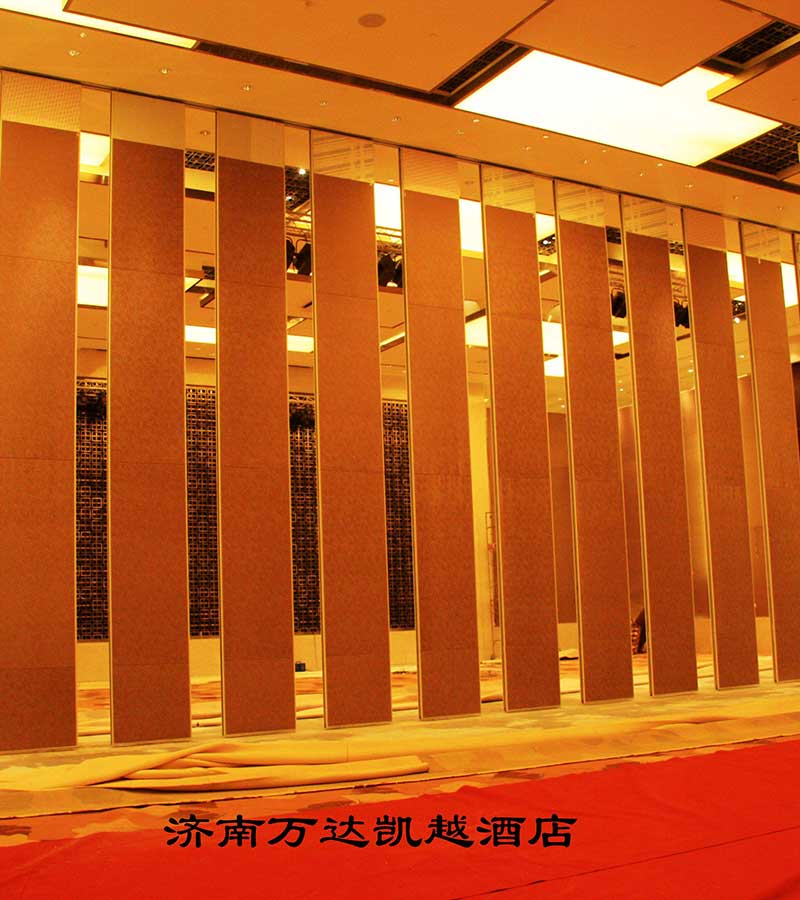

Dalai activity partition is a kind of movable wall with flexible function that can divide large space into small space or connect small space into large space at any time according to the needs. It can play the role of multi-function of one hall and multi-purpose of one room. It can be widely used in hotel conference hall, exhibition, restaurant and office;

1. Suspension without ground rail:

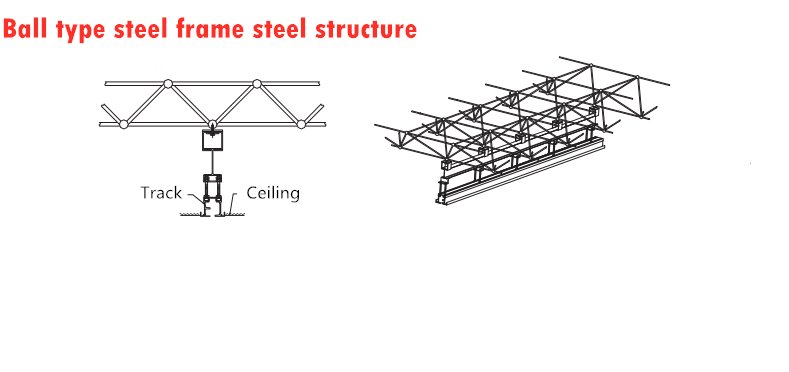

There is no track on the floor, just install the track on the ceiling, and the suspension system can be up to 18 meters;

2. Stability and safety:

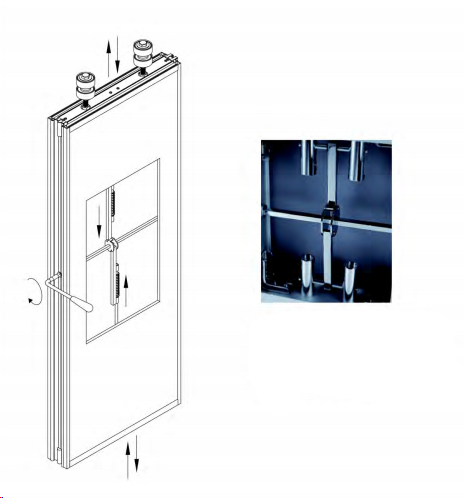

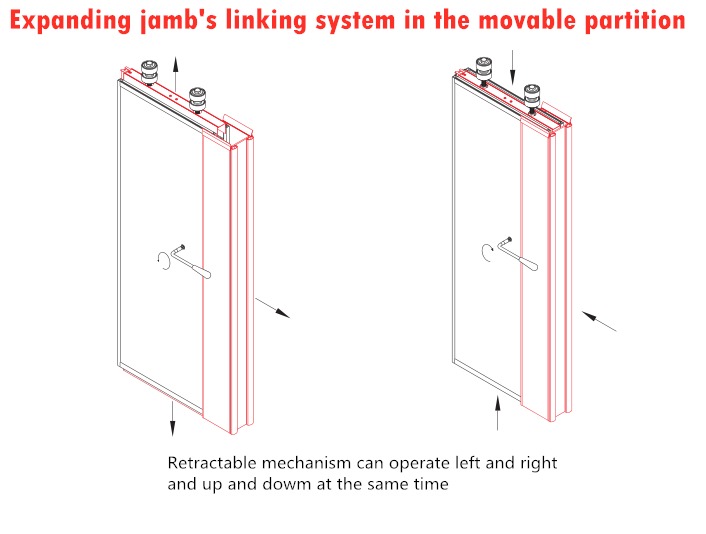

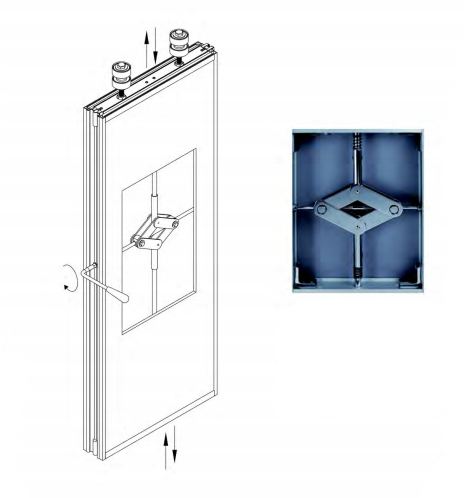

After the partition, the upper and lower transmission mechanism is used to stabilize the partition, and the links between the partitions are closely connected; the hanging system is equipped with safety device to ensure safety;

3. Sound insulation and environmental protection:

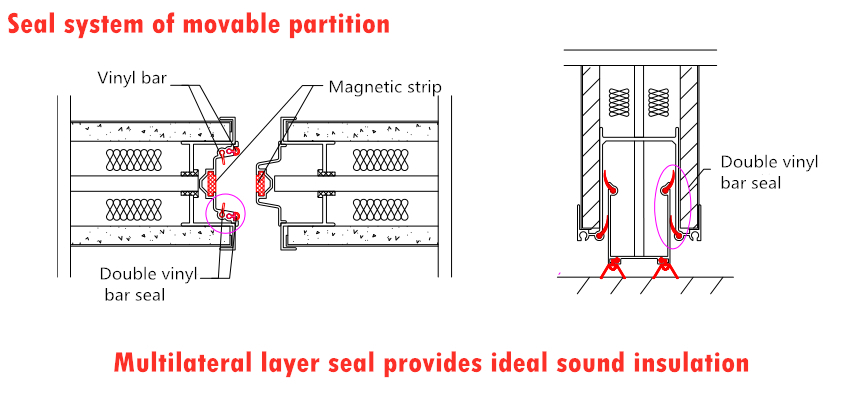

The sound insulation effect is good, the maximum sound insulation coefficient can reach 55dB; the partition and partition, wall, ceiling and ground are sealed by locking mechanism and silica gel, and the interior of the partition is blocked by high-density plates and sound insulation materials to achieve the best sound insulation effect;

4.The heat insulation performance is excellent.

According to different utilization rate, the large space is divided into small space to reduce the power consumption of air conditioning;

5. Efficient fire prevention:

It is made of high-efficiency fireproof material, and its fireproof performance can reach A-level;

6. Beautiful and elegant:

Dali wood processing center can make the partition surface arbitrary decoration to match the indoor decoration effect on site;

7. Flexible operation:

The whole process can be completed by one person;

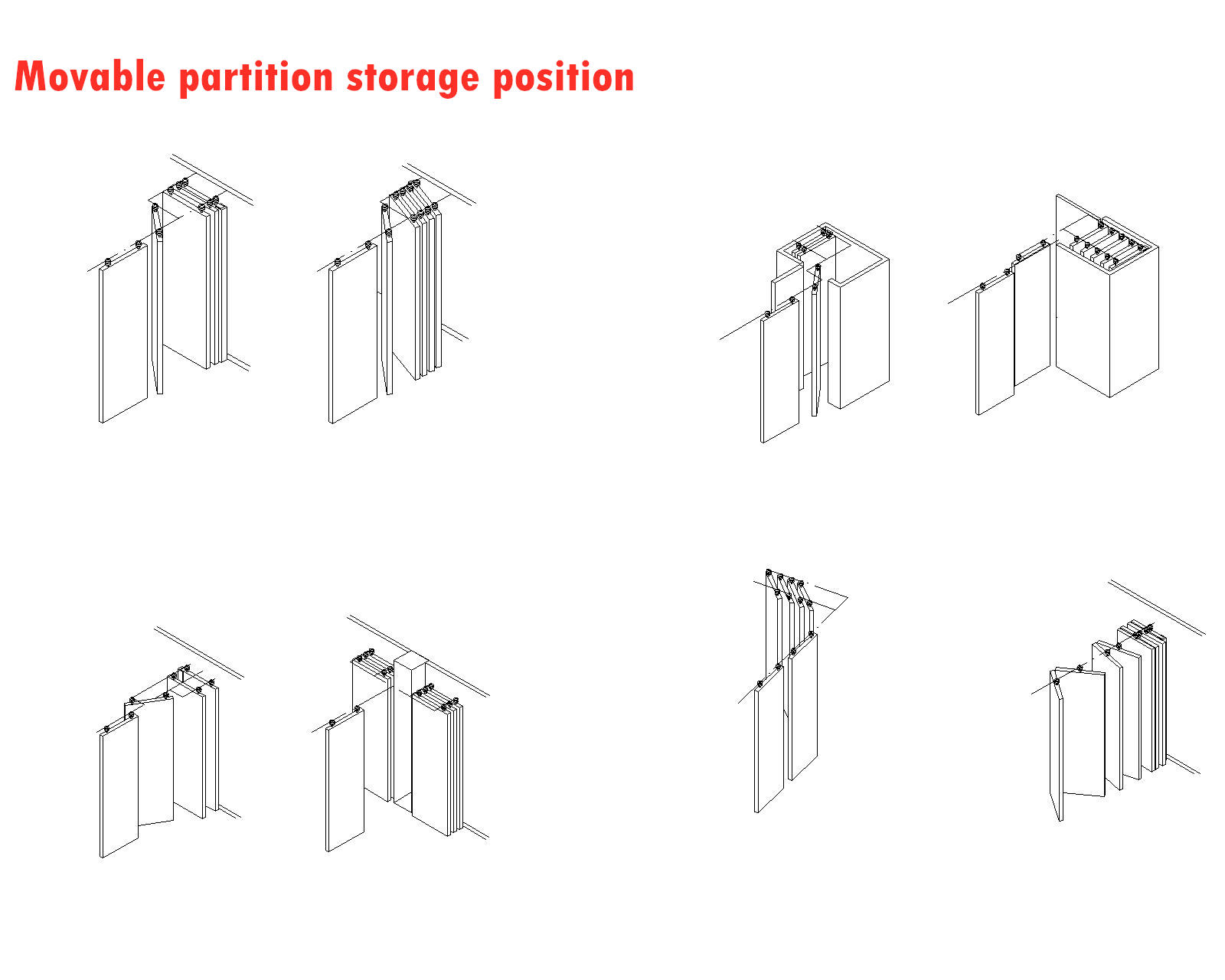

8. Convenient collection:

The flexible and diverse clapboard collection way enables t

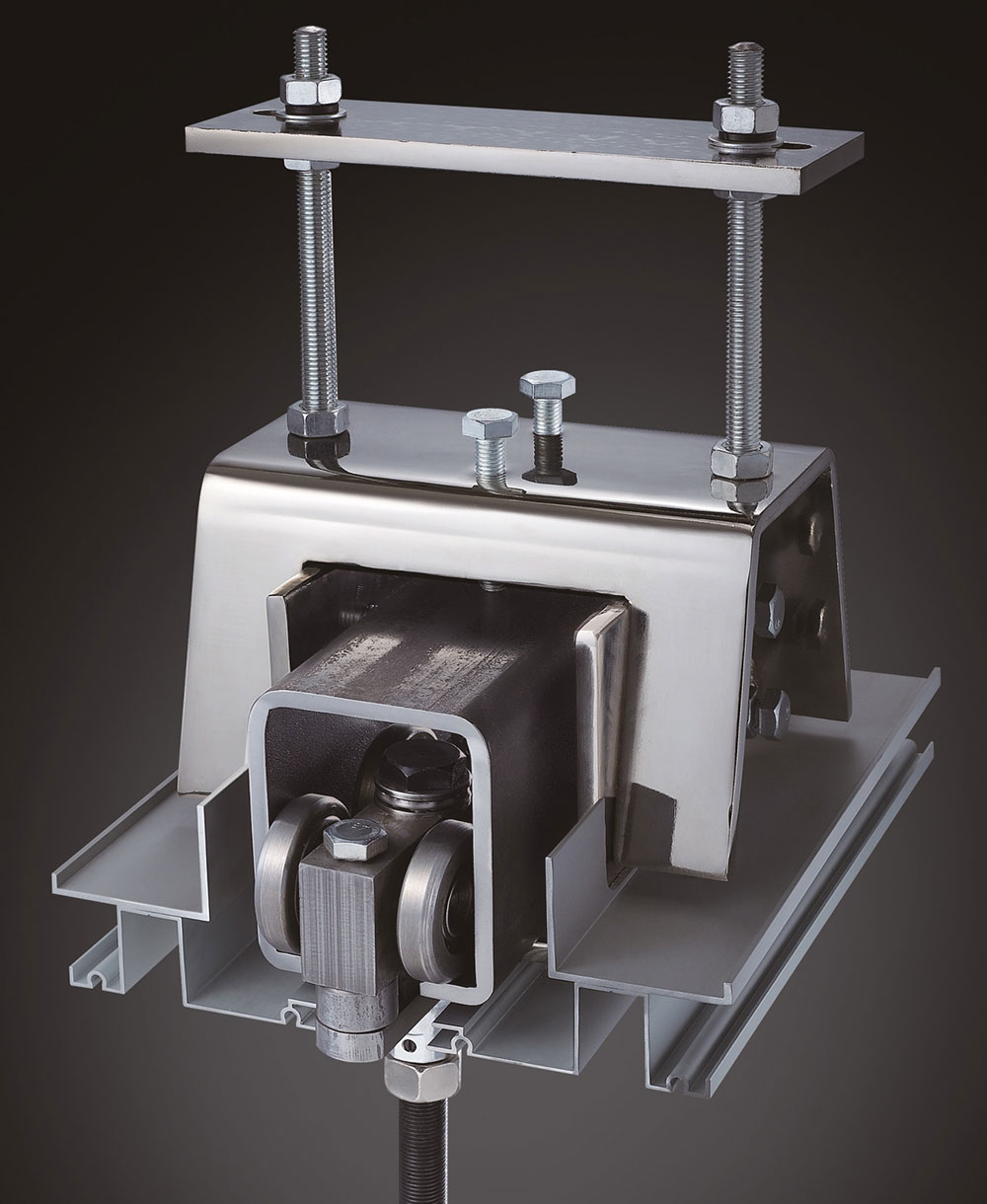

P18 - steel track

p20

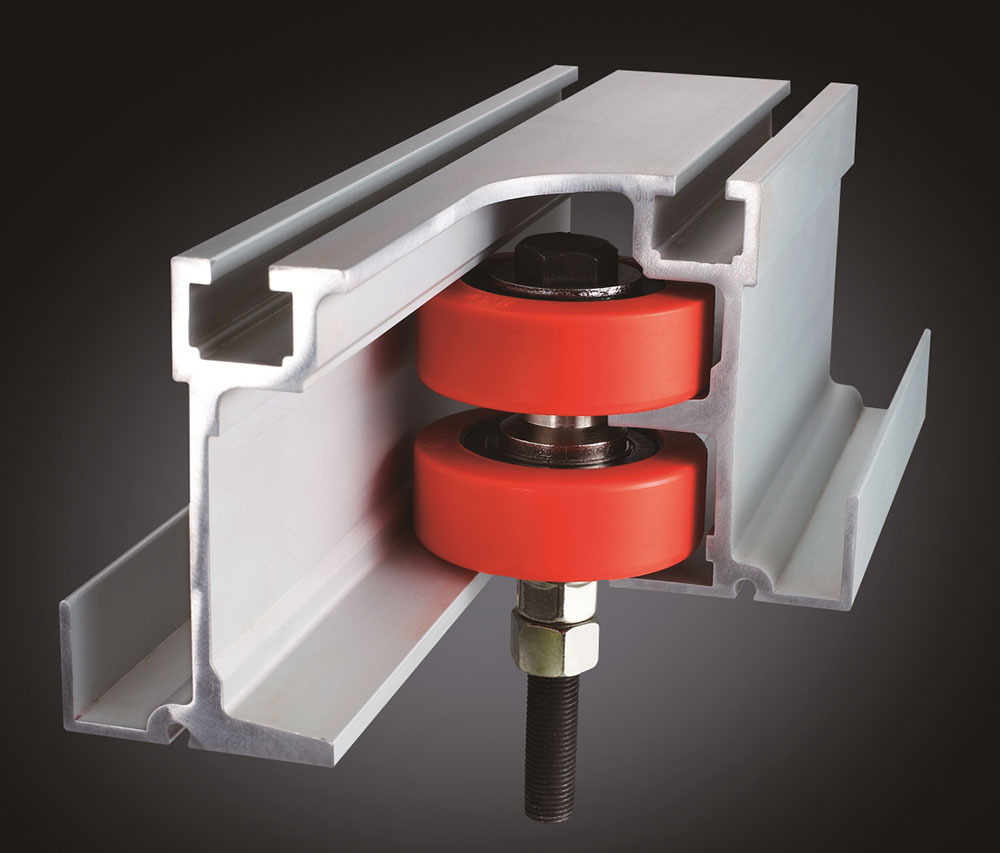

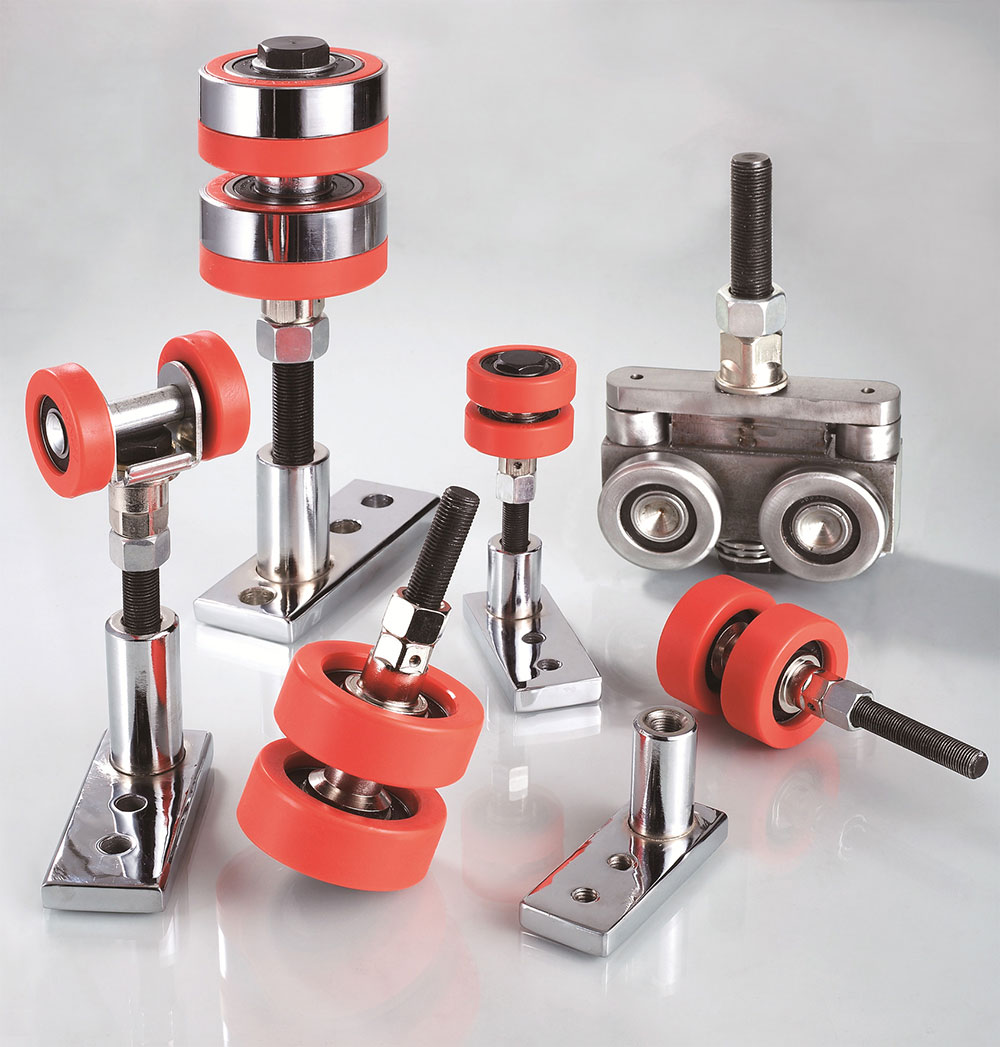

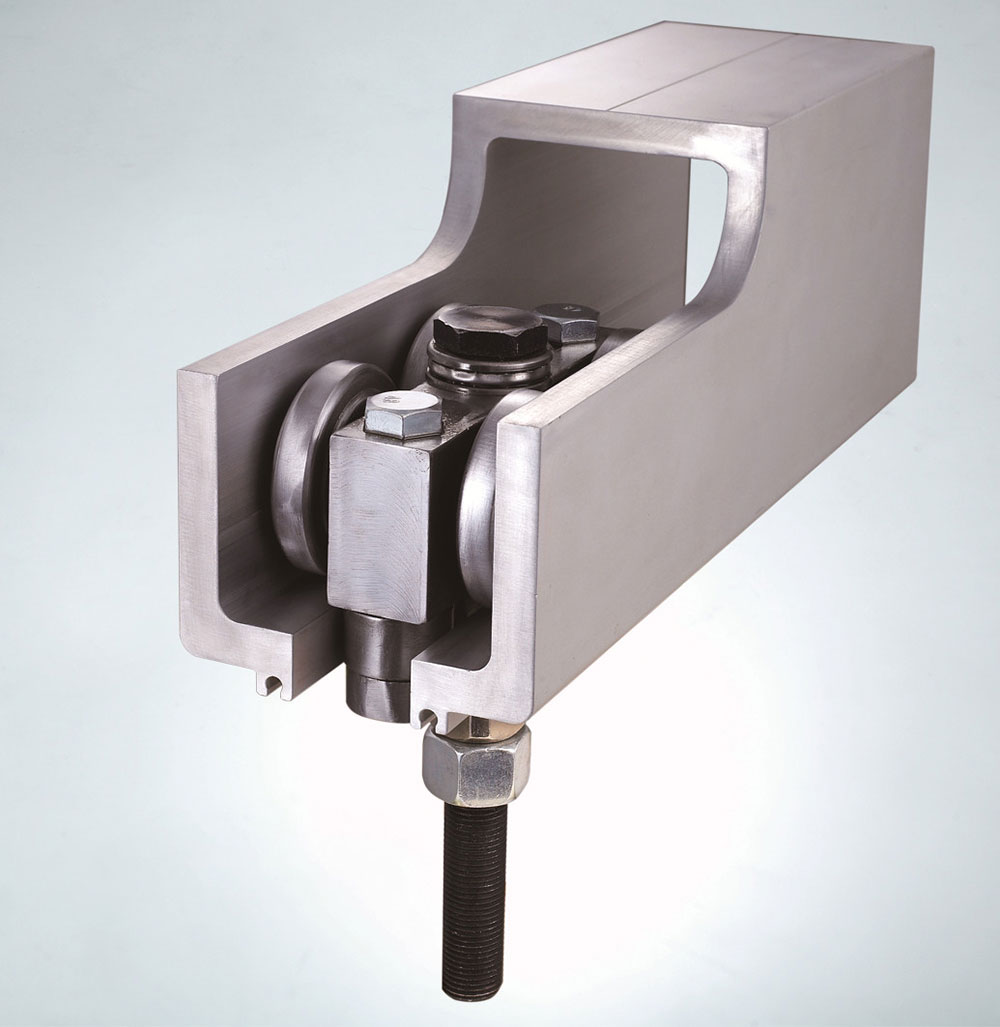

Crane wheel

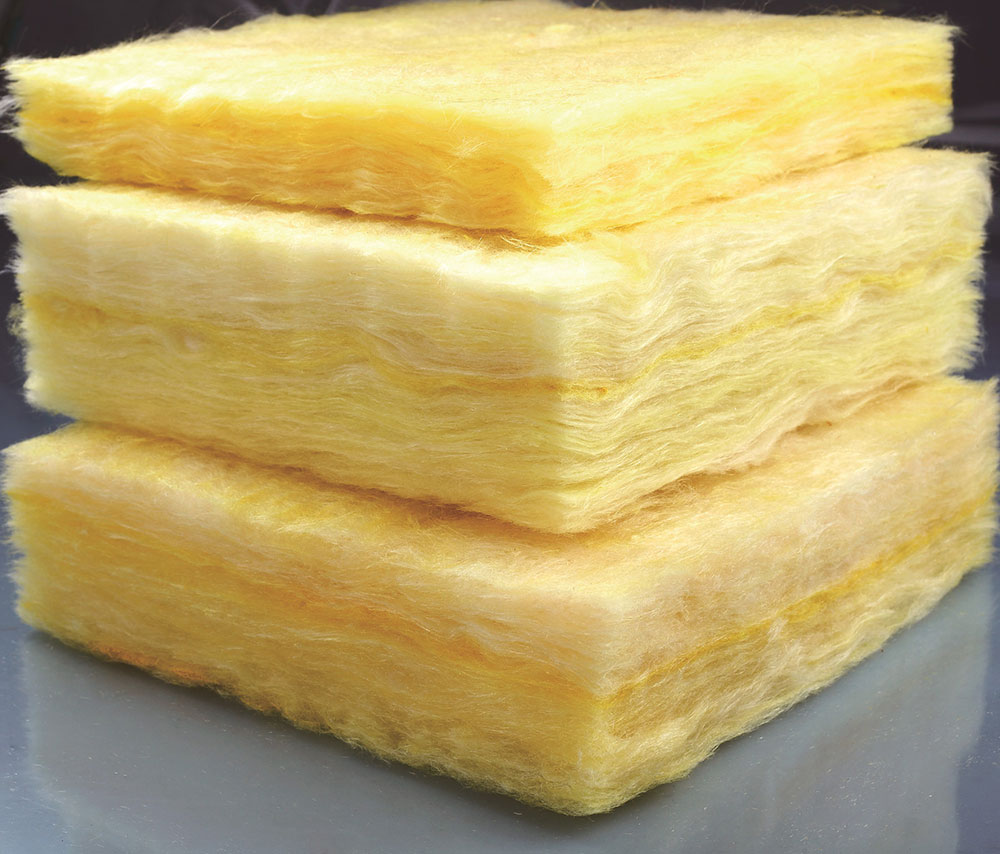

Soundproof cotton

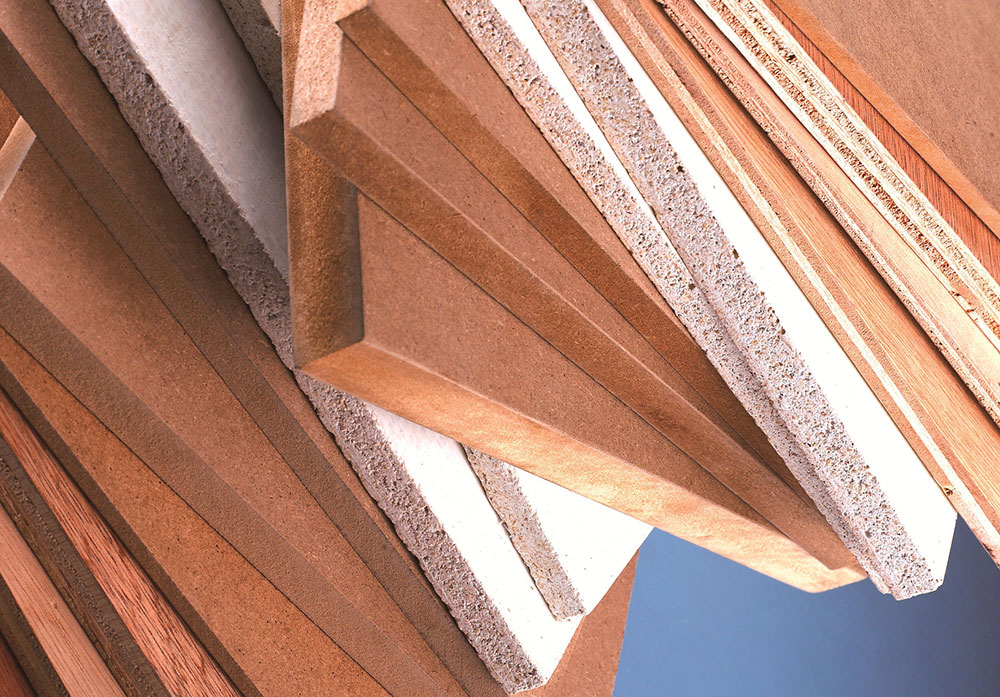

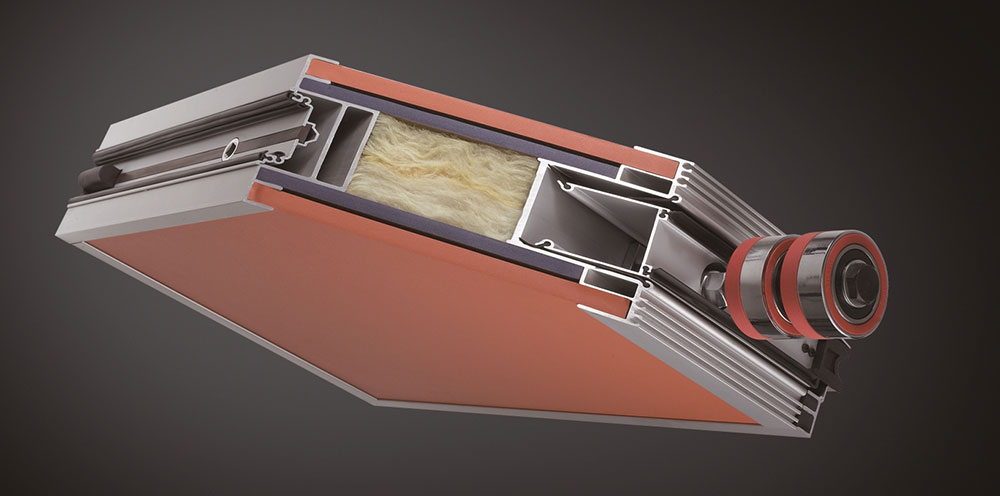

Foundation panel

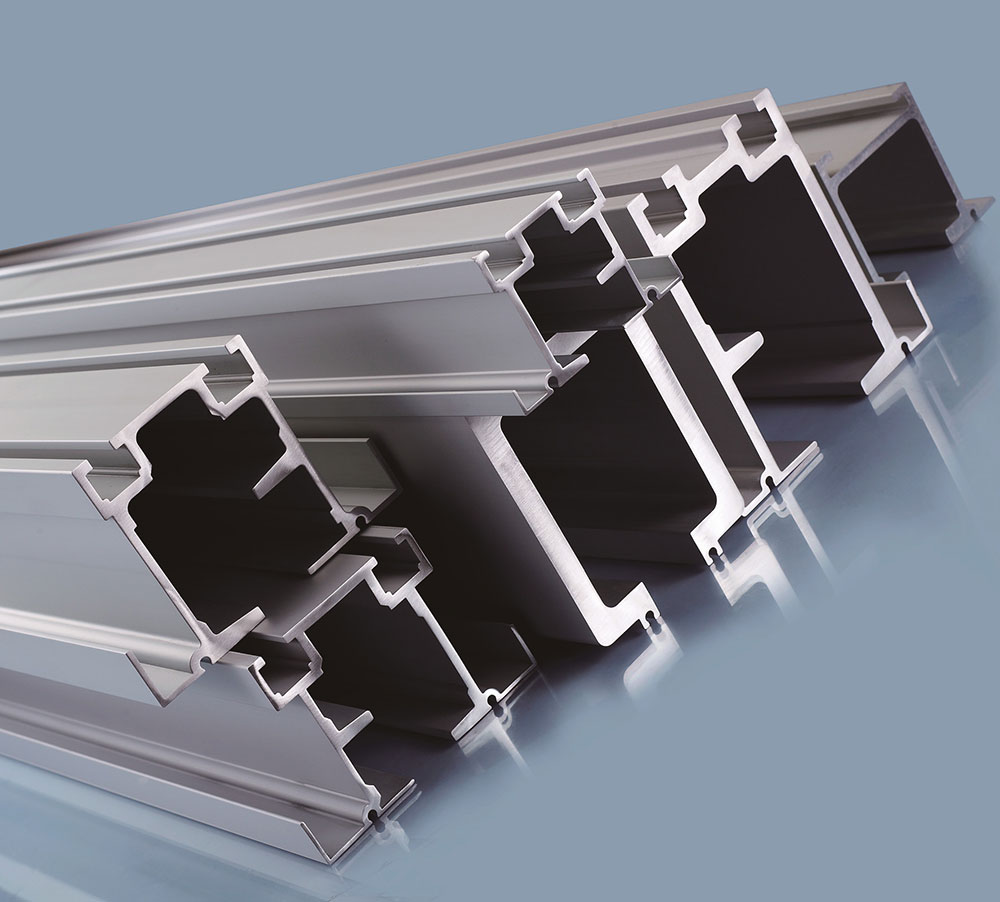

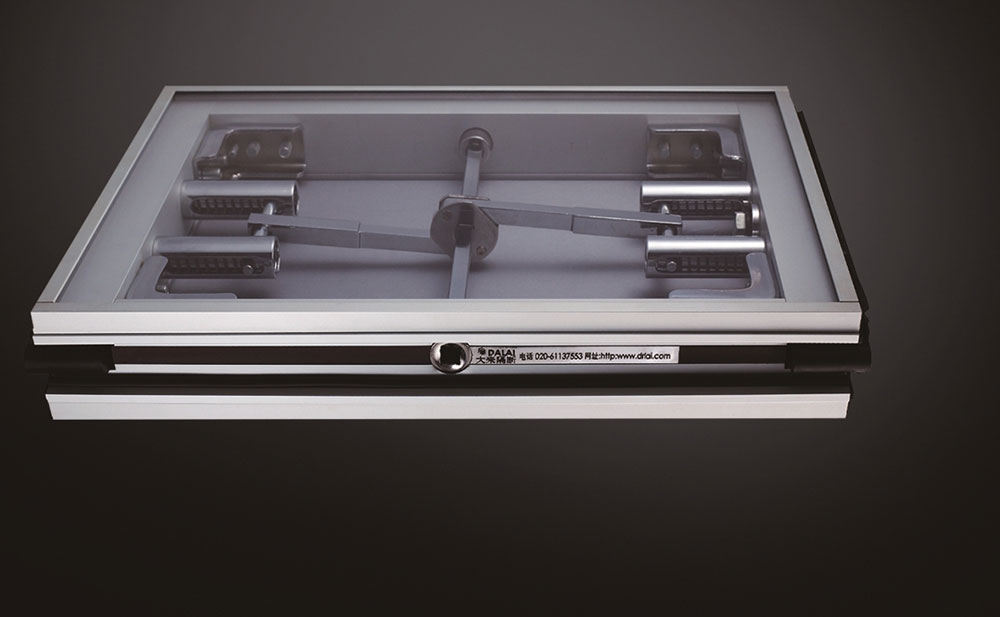

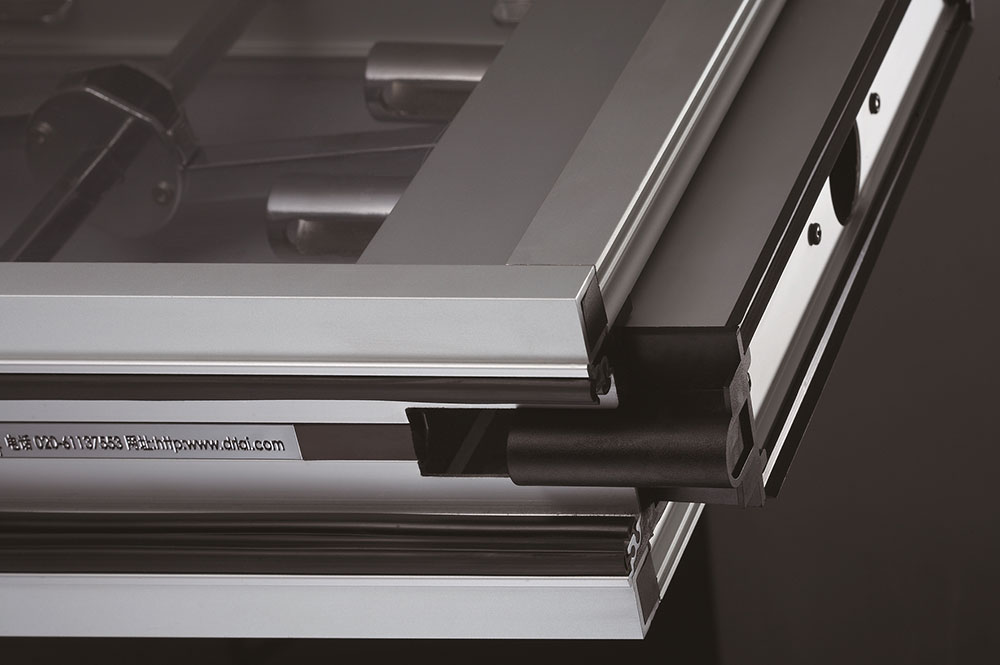

Aluminum frame material

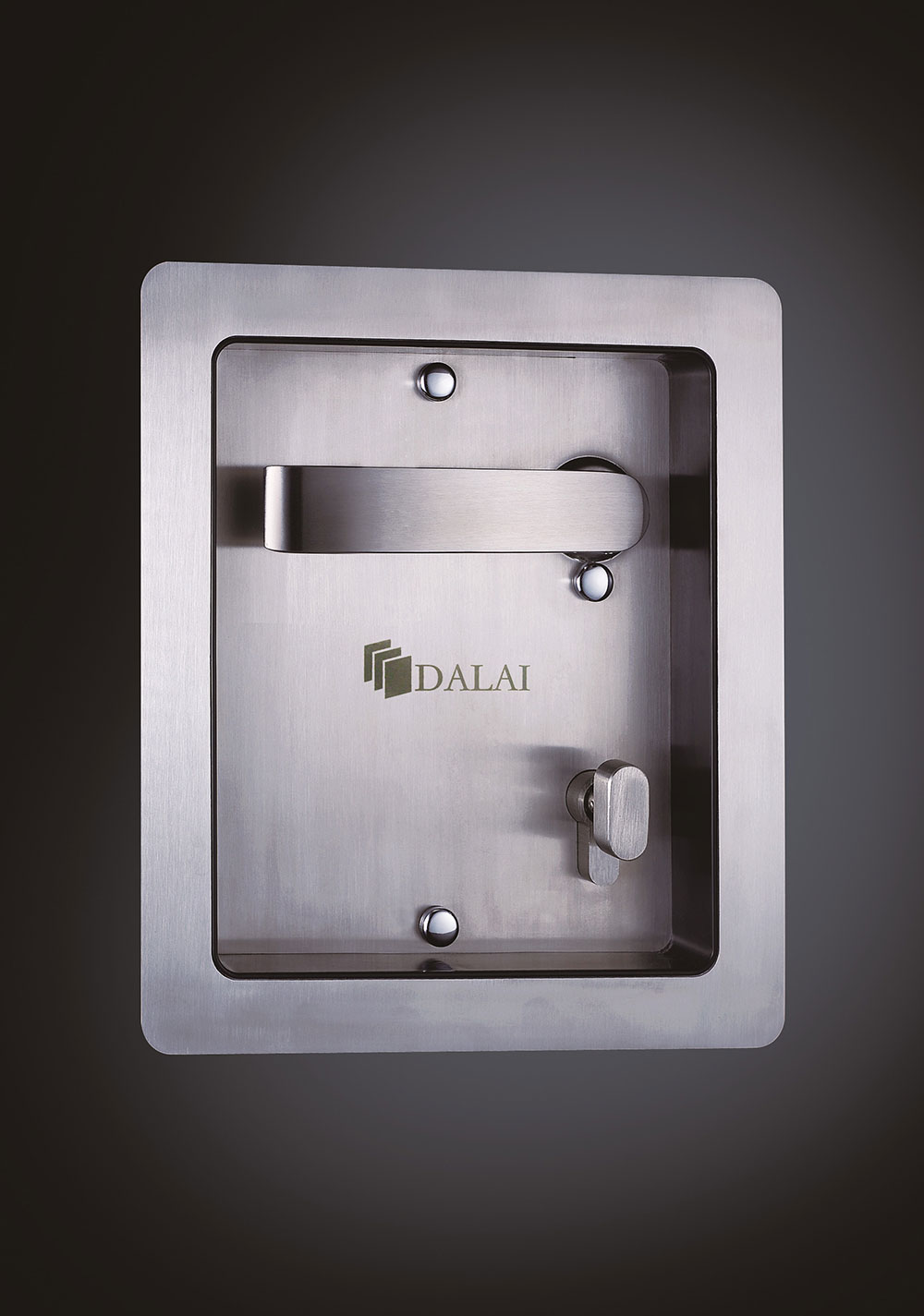

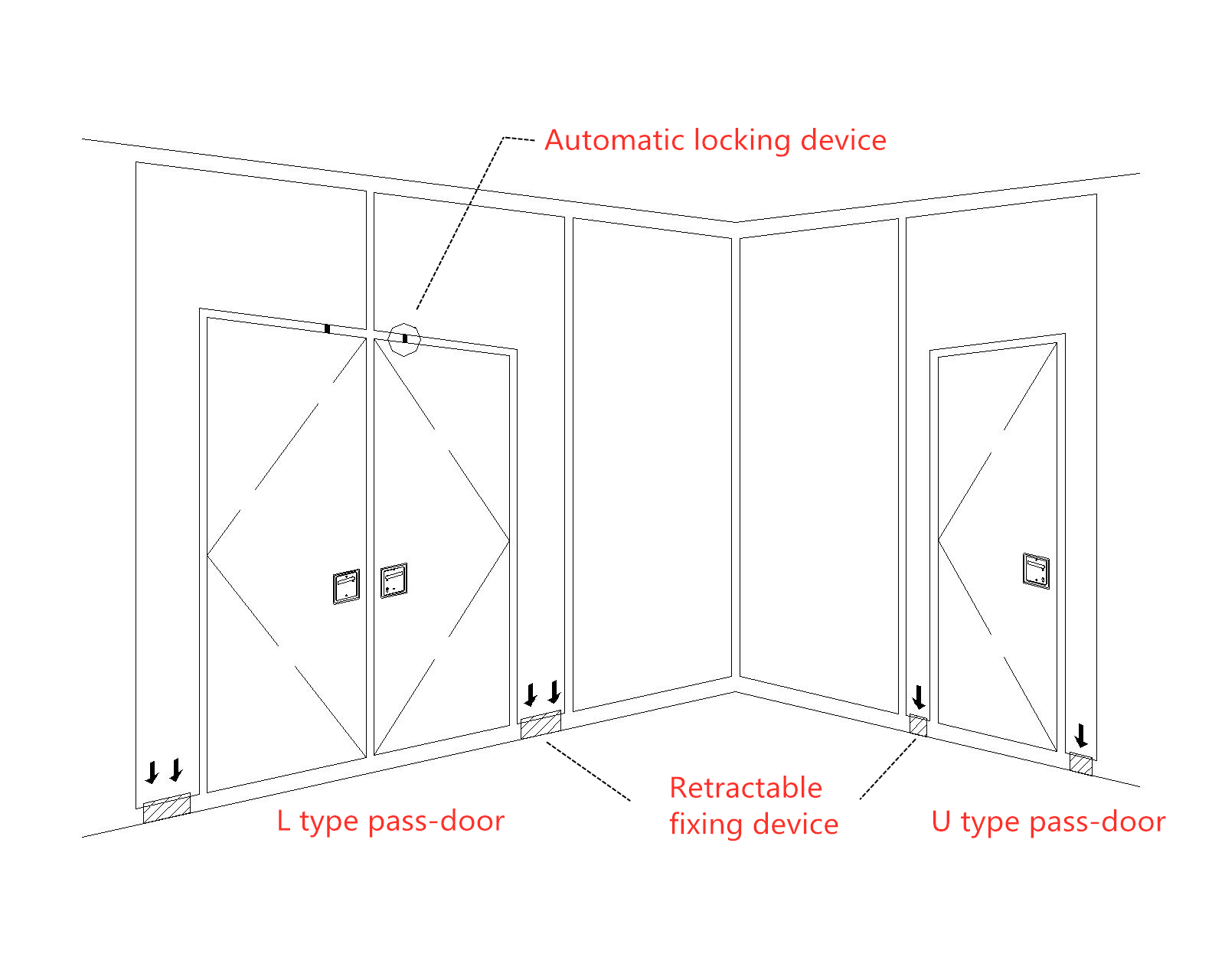

Stainless steel locking plate for middle door

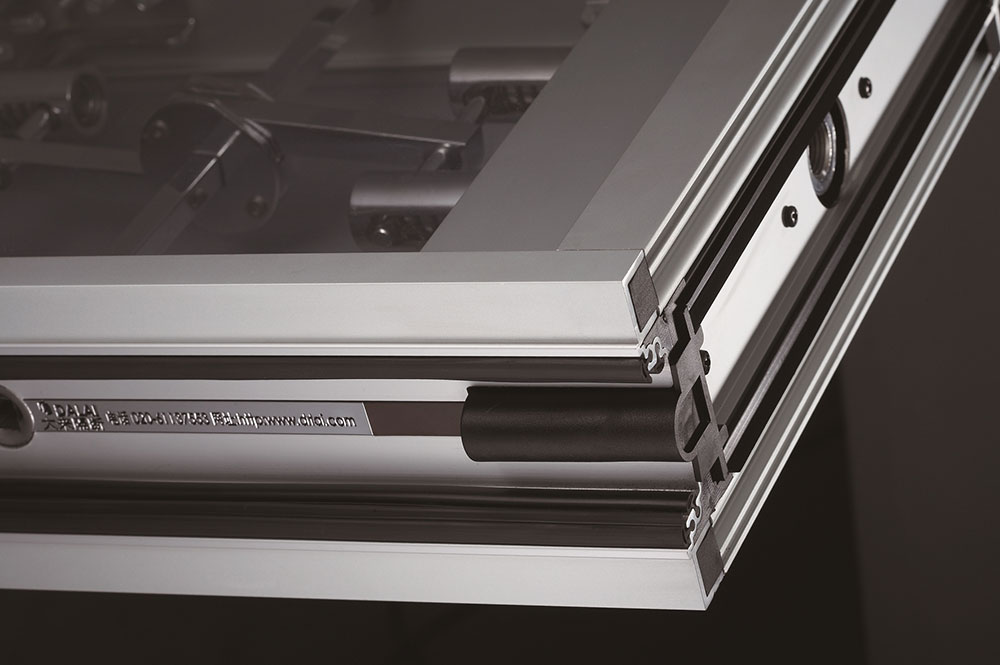

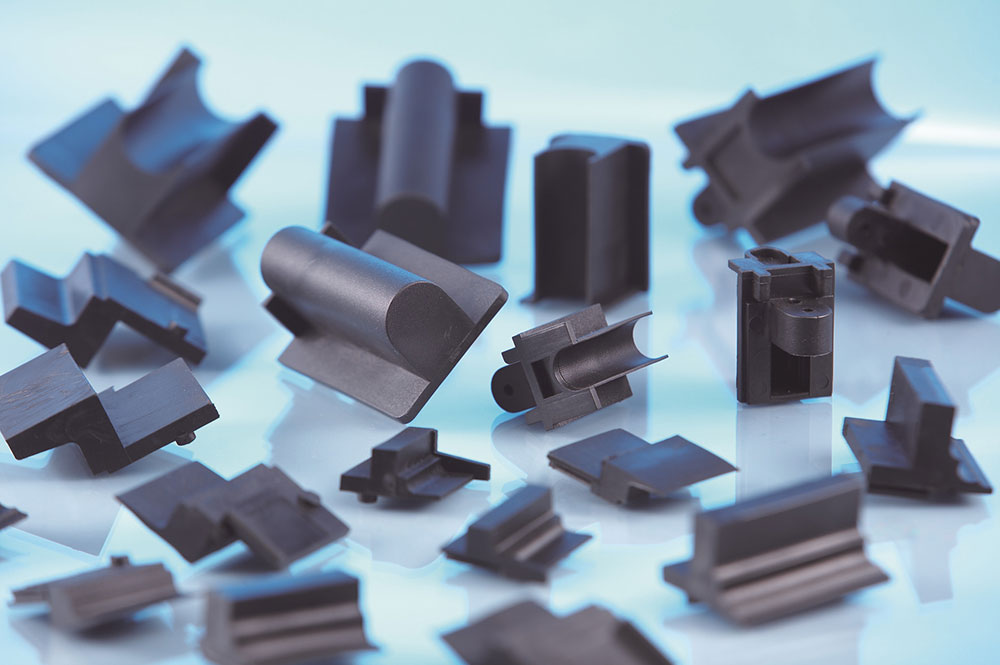

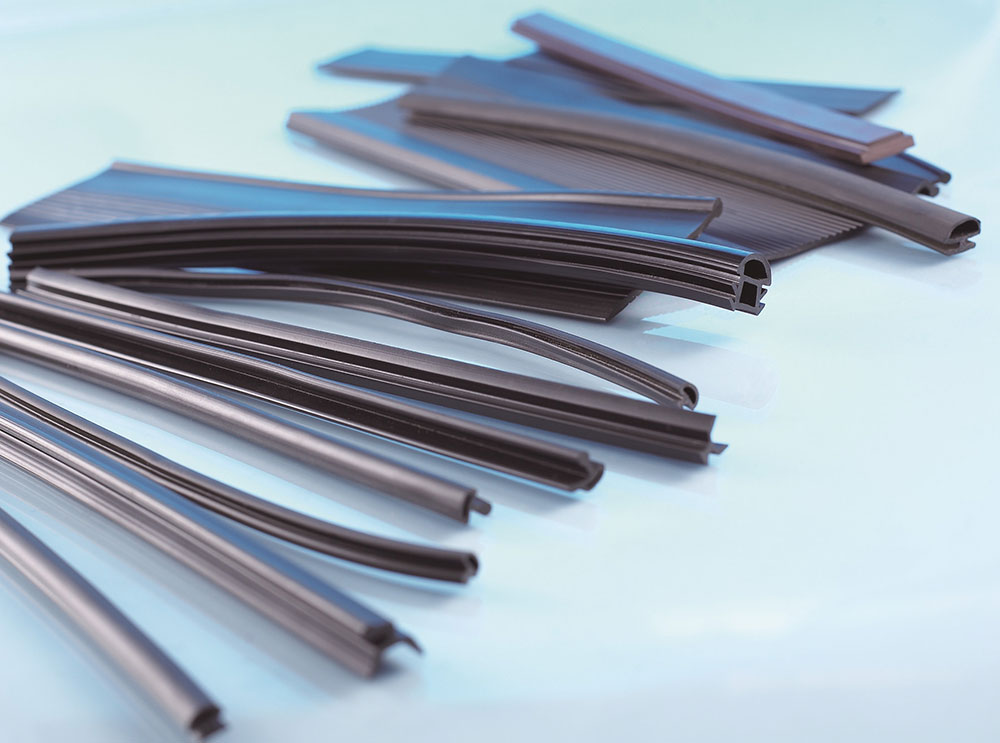

Sealant parts

Sealant parts2

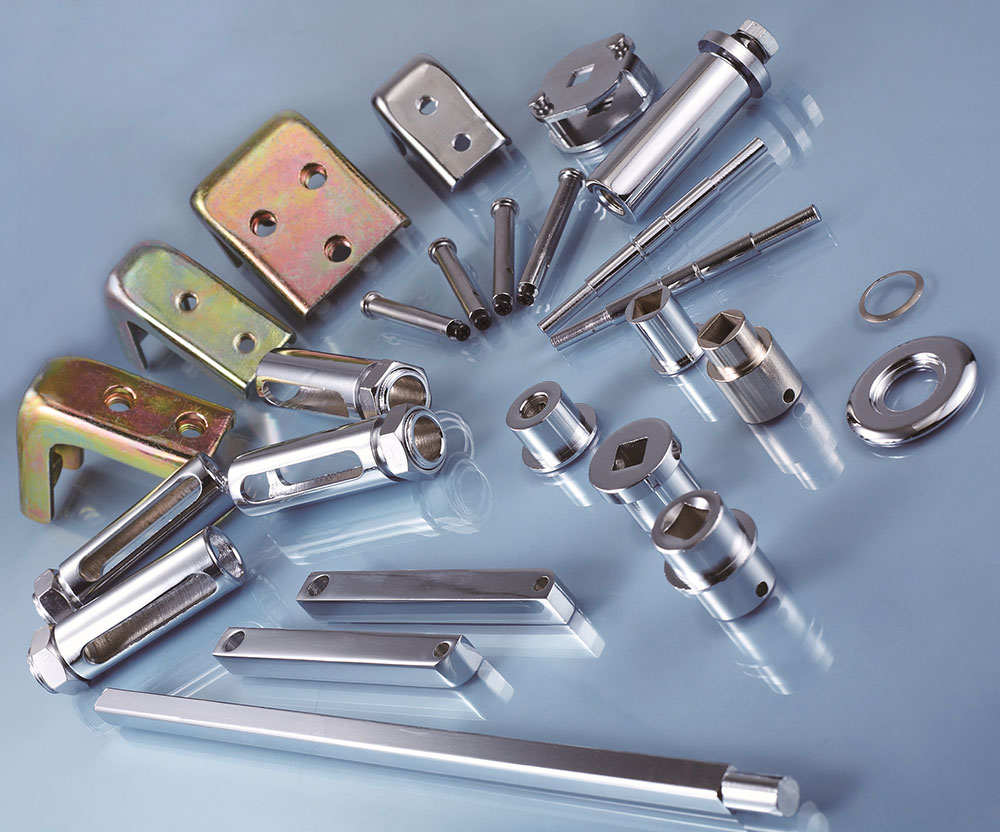

Hardware

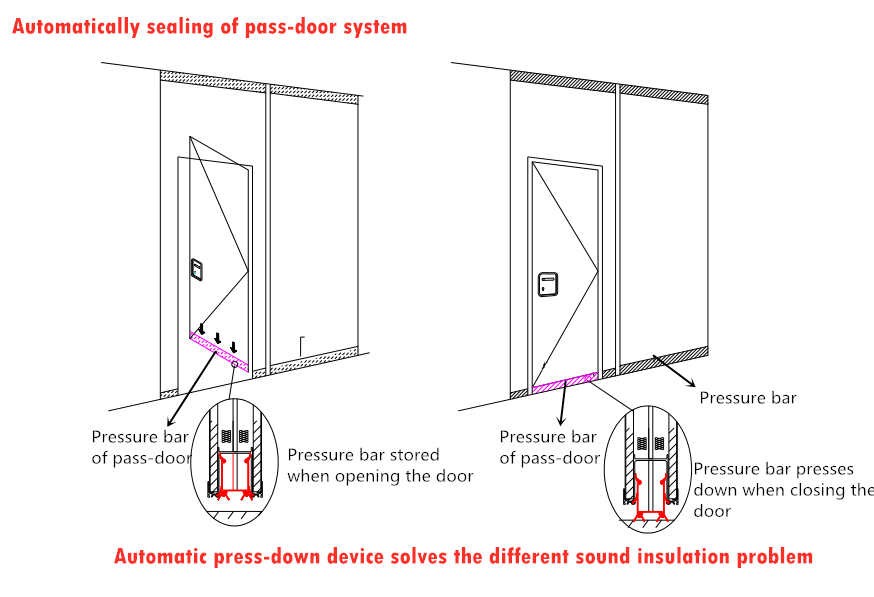

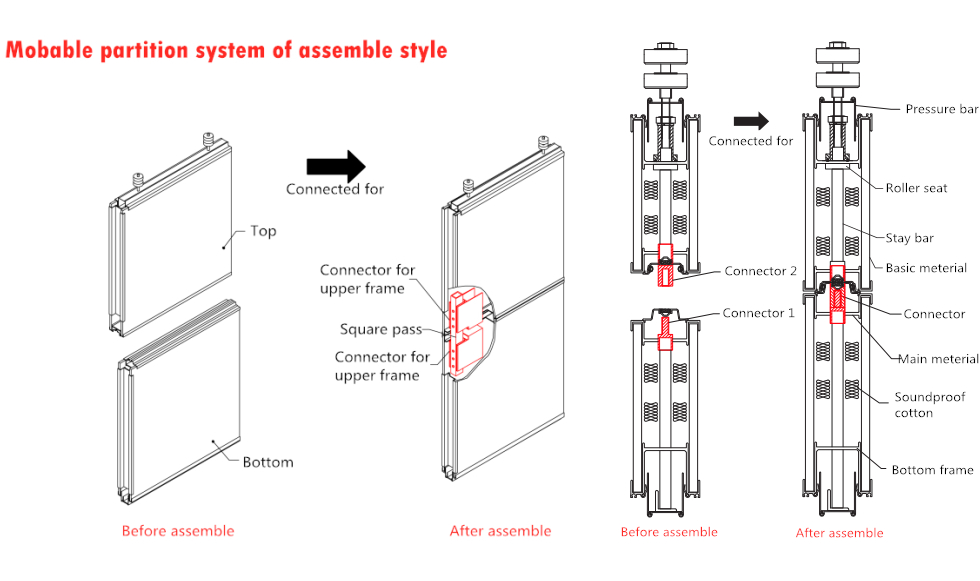

New up and down pressing strip complete sealing system 1

New up and down pressing strip complete sealing system 2
